SegFormer

This tutorial is about SegFormer model using HuggingFaces.

• Original implementation: NVlabs/SegFormer
• HF implementation: docs

Libraries

• albumentations - For augmentation pipeline.
• transformers - For model structure.
• Pytorch - As model backend, and for the training loop, using: optimizer, learning rate scheduler, loss functions and other things.
• datasets - To load the dataset.
• matplotlib - for visualization.
• torchmetrics - to evaluate the model when training the model
• lapixdl - tool for model evaluation

Summary

• Run setup - General settings of this tutorials: Here you will define the categories, dataset (from HF datasets), the pretrained model desired (from HF models), and the path for the output files.

  • Attention: The dataset need to be a dataset for Semantic Segmentation, read the CCAgT dataset card to understand the format. Also, the pretrained weights for the model for this tutorial should be from a SegFormer model.

• Setup requirements - Install and import the nescessary modules

  • Attention: If using google colab, you will probably need to restart the kernel because of the reinstallation of PIL.

• Load dataset - Load the dataset from the HF hub.

• Augmentations - Define the augmentation pipeline process.

• Rewrite the model - Just to only to assign weights to each class in the loss function

• HF definitions - A dataset class for the model, load the model and feature extractor, define the train metrics, and training functions.

• Train - The blocks to execute the train, splited into 2 steps

• Lapixdl evaluation - Load the best model and evaluate.

Train “strategy” for the CCAgT dataset

• At this tutorial we apply RandomCrop from Albumentation to ensure images with size of 512x512 to train SegFormer.
• Use weights for each category for the loss function (CrossEntropyLoss).
• Use IoU metric to evaluate the model at pixel level when training the model.
• AdamW as optimizer.
• OneCycleLR as scheduler for the learning rate.
• Train into two steps:
  1. Train the model for x epochs with the encoder freezed.
  2. Load the model from the first step, and train for x epochs with the encoder unfreezed.

Run setup

# Values of each category at the segmentation mask
categories_to_train = {
    0,
    1,
    2,
    3,
    4,
    5,
    6,
    7,
}


# The main categories of the dataset, just to compute the metrics for specific categories
selected_categories = {
    1,
    2,
    3,
}

loss_function_weights = [...]  # (need to edit) Weights for each category

The pretrained model can be:

hub name	variant	Depths	Hidden sizes	Decoder hidden size	Params (M)	ImageNet-1k Top 1
nvidia/mit-b0	MiT-b0	[2, 2, 2, 2]	[32, 64, 160, 256]	256	3.7	70.5
nvidia/mit-b1	MiT-b1	[2, 2, 2, 2]	[64, 128, 320, 512]	256	14.0	78.7
nvidia/mit-b2	MiT-b2	[3, 4, 6, 3]	[64, 128, 320, 512]	768	25.4	81.6
nvidia/mit-b3	MiT-b3	[3, 4, 18, 3]	[64, 128, 320, 512]	768	45.2	83.1
nvidia/mit-b4	MiT-b4	[3, 8, 27, 3]	[64, 128, 320, 512]	768	62.6	83.6
nvidia/mit-b5	MiT-b5	[3, 6, 40, 3]	[64, 128, 320, 512]	768	82.0	83.8

# (need to edit) To load the model weights and feature extractor
pretrained_model_name = "nvidia/mit-b3"

# (need to edit) To load the dataset from HF hub
dataset_hub_name = "lapix/CCAgT"

# (need to edit) Base path where to save the models output - We recommend use google drive when running on google colab
drive_output_base_path = "./"

id2label = {
    0: "Background",
    1: "Nucleus",
    2: "Cluster",
    3: "Satellite",
    4: "Nucleus_out-of-focus",
    5: "Overlapped_nuclei",
    6: "Non-viable_nucleus",
    7: "Leukocyte_nucleus",
}  # (need to edit) Dict with category value to name of category

label2id = {
    "Background": 0,
    "Nucleus": 1,
    "Cluster": 2,
    "Satellite": 3,
    "Nucleus_out-of-focus": 4,
    "Overlapped_nuclei": 5,
    "Non-viable_nucleus": 6,
    "Leukocyte_nucleus": 7,
}  # (need to edit) Dict with name of the category to category value

id2color = {
    0: (0, 0, 0),
    1: (21, 62, 125),
    2: (114, 67, 144),
    3: (254, 166, 0),
    4: (26, 167, 238),
    5: (39, 91, 82),
    6: (5, 207, 192),
    7: (255, 0, 0),
}  # (need to edit) Dict withcategory value to category color (R, G, B)

# check the GPU and VRAM
%reload_ext autoreload
%autoreload 2
%matplotlib inline
!/opt/bin/nvidia-smi
!nvcc --version

Mon Sep 12 14:43:42 2022
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 460.32.03    Driver Version: 460.32.03    CUDA Version: 11.2     |
|-------------------------------+----------------------+----------------------+
| GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
|                               |                      |               MIG M. |
|===============================+======================+======================|
|   0  Tesla T4            Off  | 00000000:00:04.0 Off |                    0 |
| N/A   36C    P8     9W /  70W |      0MiB / 15109MiB |      0%      Default |
|                               |                      |                  N/A |
+-------------------------------+----------------------+----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                                  |
|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
|        ID   ID                                                   Usage      |
|=============================================================================|
|  No running processes found                                                 |
+-----------------------------------------------------------------------------+
nvcc: NVIDIA (R) Cuda compiler driver
Copyright (c) 2005-2020 NVIDIA Corporation
Built on Mon_Oct_12_20:09:46_PDT_2020
Cuda compilation tools, release 11.1, V11.1.105
Build cuda_11.1.TC455_06.29190527_0

Setup requirements

install

%nbdev_collapse_output
!pip install transformers==4.18.0
!pip install timm==0.5.4
!pip install lapixdl==0.8.12
!pip install torchmetrics==0.8.0
!pip install git+https://github.com/albumentations-team/albumentations
!pip install Pillow==9.0.0 # Because inside of HF image_utils needs PIL.Image.Resampling
!pip install datasets

%nbdev_collapse_output
# https://github.com/albumentations-team/albumentations/issues/1100#issuecomment-1003467333
!pip uninstall opencv-python-headless -y
!pip install opencv-python-headless==4.1.2.30

imports

import multiprocessing
import os
from datetime import datetime

import albumentations as A
import matplotlib.colors as mlp_colors
import matplotlib.pyplot as plt
import numpy as np
import torch
from datasets import load_dataset  # HF datasets
from lapixdl.evaluation.evaluate import evaluate_segmentation
from matplotlib import patches
from PIL import Image
from torch import nn
from torch.optim import AdamW
from torch.optim.lr_scheduler import OneCycleLR
from torch.utils.data import DataLoader, Dataset
from torchmetrics import Metric
from tqdm.notebook import tqdm
from transformers import SegformerFeatureExtractor

Load dataset

In this tutorial we will load a dataset from the Hugging Face Hub. The dataset utilized is the CCAgT

dataset = load_dataset(dataset_hub_name)

WARNING:datasets.builder:No config specified, defaulting to: cc_ag_t/semantic_segmentation

Downloading and preparing dataset cc_ag_t/semantic_segmentation (download: 3.31 GiB, generated: 2.85 MiB, post-processed: Unknown size, total: 3.31 GiB) to /root/.cache/huggingface/datasets/lapix___cc_ag_t/semantic_segmentation/2.0.0/b217fbe80bc3e3bd4767d20634c00a8ce07a817f863ecd14c762718168f151e0...

Dataset cc_ag_t downloaded and prepared to /root/.cache/huggingface/datasets/lapix___cc_ag_t/semantic_segmentation/2.0.0/b217fbe80bc3e3bd4767d20634c00a8ce07a817f863ecd14c762718168f151e0. Subsequent calls will reuse this data.

After download all dataset, the dataset will be a “DatasetDict”, where we can acces each fold of the dataset.

dataset

DatasetDict({
    train: Dataset({
        features: ['image', 'annotation'],
        num_rows: 6533
    })
    test: Dataset({
        features: ['image', 'annotation'],
        num_rows: 1403
    })
    validation: Dataset({
        features: ['image', 'annotation'],
        num_rows: 1403
    })
})

We can easily access any image of any fold. As follow:

dataset["train"][0]["image"]

Augmentations

For this work we use albumentations:

https://albumentations.ai/

@Article{info11020125,
    AUTHOR = {Buslaev, Alexander and Iglovikov, Vladimir I. and Khvedchenya, Eugene and Parinov, Alex and Druzhinin, Mikhail and Kalinin, Alexandr A.},
    TITLE = {Albumentations: Fast and Flexible Image Augmentations},
    JOURNAL = {Information},
    VOLUME = {11},
    YEAR = {2020},
    NUMBER = {2},
    ARTICLE-NUMBER = {125},
    URL = {https://www.mdpi.com/2078-2489/11/2/125},
    ISSN = {2078-2489},
    DOI = {10.3390/info11020125}
}

The augmentation functions are applied every time an image is passed from the dataloader to the model during training. So in a single epoch the model trains on one augmented version of each image in the data set.

Appling a pipeline of augmentations

First, we fix the seeds, and then create a pipeline of transforms from albumentations.

# Fix seeds for albumentations
import random

import imgaug

random.seed(1609)
imgaug.seed(1609)

albumentations_transforms = [
    A.ColorJitter(
        brightness=0.2, contrast=0.2, saturation=0.2, hue=0.2, p=0.5, always_apply=False
    ),
    A.GridDistortion(
        num_steps=5,
        distort_limit=(-0.3, 0.3),
        interpolation=2,
        border_mode=4,
        value=(0, 0, 0),
        mask_value=0,
        p=0.5,
        always_apply=False,
    ),  # testar
    A.ShiftScaleRotate(
        shift_limit=(-0.25, 0.25),
        scale_limit=(-0.5, 0.5),
        rotate_limit=(-90, 90),
        interpolation=2,
        border_mode=3,
        value=(0, 0, 0),
        mask_value=0,
        p=0.5,
        always_apply=False,
    ),
    A.VerticalFlip(p=0.5, always_apply=False),
    A.HorizontalFlip(p=0.5, always_apply=False),
    A.RandomCrop(height=512, width=512, always_apply=True),
    # A.Normalize(
    # mean=(0.67167, 0.7197, 0.77049), std=(0.1557, 0.12242, 0.08686), max_pixel_value=255.0, always_apply=True, p=1.0
    # )
]

alb_transform = A.Compose(albumentations_transforms)

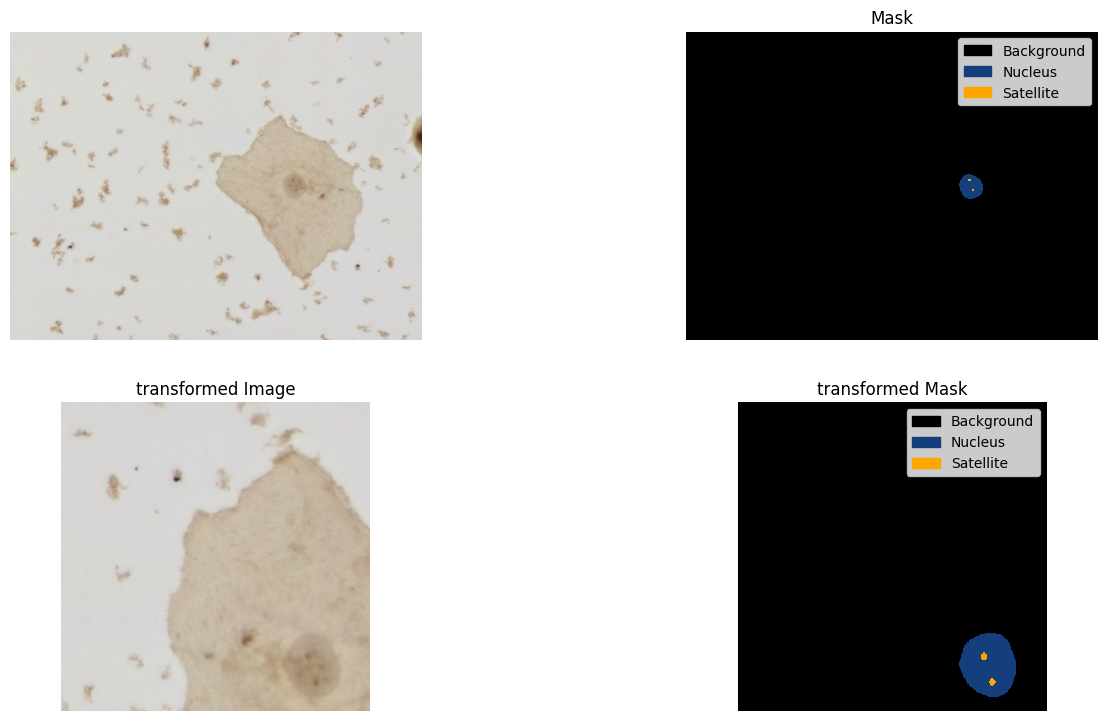

Run the transforms pipeline and plot the image and mask as visualization example

image = np.array(dataset["train"][0]["image"])
mask = np.array(dataset["train"][0]["annotation"])

transformed = alb_transform(image=image, mask=mask)

transformed_image = transformed["image"]
transformed_mask = transformed["mask"]

fig = plt.figure(figsize=(16, 9), dpi=100)

ax1 = fig.add_subplot(2, 2, 1)
ax1.imshow(image)
ax1.set_axis_off()

ax2 = fig.add_subplot(2, 2, 2, sharex=ax1, sharey=ax1)

mask_categories = np.unique(mask)

colors_rgba = {k: tuple([c / 255 for c in v] + [1.0]) for k, v in id2color.items()}
cmap = mlp_colors.ListedColormap([colors_rgba[cat_id] for cat_id in mask_categories])
handles = [
    patches.Patch(color=colors_rgba[cat_id], label=id2label[cat_id])
    for cat_id in mask_categories
]


ax2.imshow(
    mask,
    cmap=cmap,
    vmax=max(mask_categories),
    vmin=min(mask_categories),
    interpolation="nearest",
)
ax2.set_axis_off()
ax2.legend(handles=handles)
ax2.set_title("Mask")


ax3 = fig.add_subplot(2, 2, 3)
ax3.imshow(transformed_image)
ax3.set_axis_off()
ax3.set_title("transformed Image")

ax4 = fig.add_subplot(2, 2, 4, sharex=ax3, sharey=ax3)
ax4.imshow(
    transformed_mask,
    cmap=cmap,
    vmax=max(mask_categories),
    vmin=min(mask_categories),
    interpolation="nearest",
)
ax4.set_axis_off()
ax4.legend(handles=handles)
ax4.set_title("transformed Mask")

Text(0.5, 1.0, 'transformed Mask')

Rewrite the model

To use weights at the function loss, we need to rewrite the SegFormer class and foward the weights of the loss function

Copied from https://github.com/huggingface/transformers/blob/6568752039dfba86ba6eb994fd7e29888d5ed4a8/src/transformers/models/segformer/modeling_segformer.py#L741

from torch.nn import CrossEntropyLoss
from transformers import SegformerDecodeHead, SegformerModel, SegformerPreTrainedModel
from transformers.modeling_outputs import SemanticSegmenterOutput


class SegformerForSemanticSegmentation(SegformerPreTrainedModel):
    def __init__(self, config):
        super().__init__(config)
        self.segformer = SegformerModel(config)
        self.decode_head = SegformerDecodeHead(config)

        # Initialize weights and apply final processing
        self.post_init()

    def forward(
        self,
        pixel_values,
        labels=None,
        output_attentions=None,
        output_hidden_states=None,
        return_dict=None,
    ):
        return_dict = (
            return_dict if return_dict is not None else self.config.use_return_dict
        )
        output_hidden_states = (
            output_hidden_states
            if output_hidden_states is not None
            else self.config.output_hidden_states
        )

        outputs = self.segformer(
            pixel_values,
            output_attentions=output_attentions,
            output_hidden_states=True,  # we need the intermediate hidden states
            return_dict=return_dict,
        )

        encoder_hidden_states = outputs.hidden_states if return_dict else outputs[1]

        logits = self.decode_head(encoder_hidden_states)

        loss = None
        if labels is not None:
            if self.config.num_labels == 1:
                raise ValueError("The number of labels should be greater than one")
            else:
                # upsample logits to the images' original size
                upsampled_logits = nn.functional.interpolate(
                    logits, size=labels.shape[-2:], mode="bilinear", align_corners=False
                )

                loss_fct = CrossEntropyLoss(
                    ignore_index=self.config.semantic_loss_ignore_index,
                    weight=torch.Tensor(self.config.loss_function_weights).to(
                        self.device
                    ),
                )
                loss = loss_fct(upsampled_logits, labels)

        if not return_dict:
            if output_hidden_states:
                output = (logits,) + outputs[1:]
            else:
                output = (logits,) + outputs[2:]
            return ((loss,) + output) if loss is not None else output

        return SemanticSegmenterOutput(
            loss=loss,
            logits=logits,
            hidden_states=outputs.hidden_states if output_hidden_states else None,
            attentions=outputs.attentions,
        )

HF definitions

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

CCAgT dataset for Segmentation class

class CCAgTSeg(Dataset):
    def __init__(self, ccagt_dataset, feature_extractor, transform=None):
        self.ccagt_dataset = ccagt_dataset
        self.transform = transform
        self.feature_extractor = feature_extractor

    def __getitem__(self, idx):
        img = self.ccagt_dataset[idx]["image"].convert("RGB")
        msk = self.ccagt_dataset[idx]["annotation"].convert("L")

        if self.transform is not None:
            transformed = self.transform(image=np.array(img), mask=np.array(msk))
            img = Image.fromarray(transformed["image"])
            msk = Image.fromarray(transformed["mask"])

        encoded_inputs = self.feature_extractor(
            images=img, segmentation_maps=msk, return_tensors="pt"
        )

        for k, v in encoded_inputs.items():
            encoded_inputs[k].squeeze_()  # remove batch dimension

        return encoded_inputs

    def __len__(self):
        return self.ccagt_dataset.num_rows

Load pretrained SegFormer model

model = SegformerForSemanticSegmentation.from_pretrained(
    pretrained_model_name,
    num_labels=len(categories_to_train),
    id2label=id2label,
    label2id=label2id,
)

model.config.loss_function_weights = loss_function_weights
model.config.loss_function_weights

model.config.semantic_loss_ignore_index

Metrics code (IoU)

class IoU(Metric):
    name = "iou_by_cat"
    short_name = "iou"

    def __init__(self, ignore={0}, categories=id2label):  # Ignore background pixels
        self.ignore = ignore
        self.categories = categories
        self._categories_to_compute = {
            k: v for k, v in categories.items() if k not in ignore
        }
        self.reset()

    def reset(self):
        self.intersection = {k: 0.0 for k in self._categories_to_compute}
        self.union = {k: 0.0 for k in self._categories_to_compute}

    def update(self, preds: torch.Tensor, target: torch.Tensor):
        for cat_id in self._categories_to_compute:
            # Get the prediction and target binary mask for `c` category
            p = torch.where(preds == cat_id, 1, 0)
            t = torch.where(target == cat_id, 1, 0)

            intersection_ = (p * t).float().sum().item()
            total_area_ = (p + t).float().sum().item()
            union_ = total_area_ - intersection_

            self.intersection[cat_id] += intersection_
            self.union[cat_id] += union_

    def compute(self):
        def iou(intersection, union):
            return intersection / union if union > 0 else np.nan

        return {
            cat_name: iou(self.intersection[cat_id], self.union[cat_id])
            for cat_id, cat_name in self._categories_to_compute.items()
        }

    @staticmethod
    def to_str(iou_by_cat):
        def fs(word, value):
            size = int((len(word) - 7) / 2)
            ws = " " * size
            txt = f"{ws}{value:.5f}{ws}"
            return txt

        iou_by_cat = dict(iou_by_cat)
        txt_names = "| ".join([k for k in iou_by_cat])
        txt_values = "| ".join([fs(k, v) for k, v in iou_by_cat.items()])
        txt = f"\n\t\t| {txt_names} |"
        txt += f"\n\t\t| {txt_values} |"
        return txt


def compute_mean(
    values,
):
    return np.nanmean(values)


def compute_selected_mean(
    values_by_cat,
    selected_categories=selected_categories,  # Selected categories will be the main categories of CCAgT dataset
    label2id=label2id,
):
    return compute_mean(
        [
            value
            for cat_name, value in values_by_cat.items()
            if label2id[cat_name] in selected_categories
        ]
    )

Define metrics and monitor best model

metrics = [IoU]
monitor = "miou_selected_categories"

Load pretrained SegFormer feature extractor

feature_extractor = SegformerFeatureExtractor.from_pretrained(
    pretrained_model_name,
    do_resize=False,
    do_normalize=True,  # true needs image_mean and image_std # Issue https://github.com/huggingface/transformers/issues/17714
    image_mean=[0.0, 0.0, 0.0],
    image_std=[1.0, 1.0, 1.0],
)

Init CCAgT dataset for Segmentation

dataset_train = CCAgTSeg(
    ccagt_dataset=dataset["train"], feature_extractor=feature_extractor
)

dataset_valid = CCAgTSeg(
    ccagt_dataset=dataset["validation"], feature_extractor=feature_extractor
)

Move model to GPU

model.to(device)

model.device

device(type='cuda', index=0)

Training code

def evaluate_step(logits, labels, metrics):
    # evaluate
    with torch.no_grad():
        upsampled_logits = nn.functional.interpolate(
            logits, size=labels.shape[-2:], mode="bilinear", align_corners=False
        )
        predicted = upsampled_logits.argmax(dim=1)

        for m in metrics:
            m.update(predicted, labels)

    return metrics


def training_loop(train_dataloader, metrics, optimizer, device, epoch, scheduler=None):
    train_loss = []
    for idx, batch in enumerate(
        tqdm(train_dataloader, desc="training", unit="steps", leave=False)
    ):
        # get the inputs;
        pixel_values = batch["pixel_values"].to(device)
        labels = batch["labels"].to(device)

        # zero the parameter gradients
        optimizer.zero_grad()

        # forward + backward + optimize
        outputs = model(pixel_values=pixel_values, labels=labels)

        loss, logits = outputs.loss, outputs.logits
        train_loss.append(loss.item())

        loss.backward()
        optimizer.step()

        metrics = evaluate_step(logits, labels, metrics)
        if scheduler is not None:
            scheduler.step()

    return metrics, np.nanmean(train_loss)


def validation_loop(valid_dataloader, metrics, device):
    valid_loss = []
    for idx, batch in enumerate(
        tqdm(valid_dataloader, desc="validation", unit="steps", leave=False)
    ):
        pixel_values = batch["pixel_values"].to(device)
        labels = batch["labels"].to(device)

        outputs = model(pixel_values=pixel_values, labels=labels)
        loss, logits = outputs.loss, outputs.logits

        valid_loss.append(loss.item())

        metrics = evaluate_step(logits, labels, metrics)

    return metrics, np.nanmean(valid_loss)


def compute_and_log(metrics, step, loss, epoch, dt_start, fold):
    extra = {}
    for m in metrics:
        m_output = m.compute()
        m.reset()
        extra[m.name] = m_output
        dt_end = datetime.now()
        done_into = str(dt_end - dt_start)
        tn = dt_end.strftime("%H:%M:%S")
        print("-" * 50)
        print("-" * 22, fold, "-" * 21)
        print("-" * 50)
        print(f"\t{epoch} | {tn} | {fold} | done into: {done_into}")
        print(f"\t{epoch} | {tn} | {fold} | Loss: {loss:.8f}")
        print(f"\t{epoch} | {tn} | {fold} | {m.name}: {m.to_str(m_output)}")

        if m.name.endswith("_by_cat"):
            mean_m = compute_mean(list(m_output.values()))
            mean_selected_m = compute_selected_mean(dict(m_output))

            print(f"\t{epoch} | {tn} | {fold} | m{m.short_name}: {mean_m:.5f}")
            print(
                f"\t{epoch} | {tn} | {fold} | m{m.short_name} selected categories: {mean_selected_m:.5f}"
            )

            extra[f"m{m.short_name}"] = mean_m
            extra[f"m{m.short_name}_selected_categories"] = mean_selected_m

    return metrics, extra


def save_best_model(results, current_best_value, monitor, epoch, dir_path):
    if isinstance(monitor, str):
        if monitor in results:
            v = results[monitor]
        else:
            raise KeyError(
                f"Unexpected value for monitor. Have available: {results.keys()}"
            )
    else:
        v = monitor(results)

    if v >= current_best_value:
        print(
            f"\t{epoch} | Saving best model (last={current_best_value:.5f} | now={v:.5f})..."
        )
        current_best_value = v
        model.save_pretrained(dir_path)

    return current_best_value


def fit(
    *,
    model,
    train_dataloader,
    valid_dataloader,
    epochs,
    optimizer,
    scheduler,
    device,
    metrics,
    monitor,
    path_checkpoints,
    path_best_model,
    epoch_start=0,
):
    _metrics = {"train": [i() for i in metrics], "valid": [i() for i in metrics]}
    metric_bm = 0.0
    model.to(device)
    model.train()
    for epoch in tqdm(
        range(epoch_start, epoch_start + epochs), position=0, unit="epochs"
    ):
        dt_epoch_start = datetime.now()
        step_end = epoch * len(train_dataloader)
        print(f"Epoch: {epoch} -> start at {dt_epoch_start}")

        # Normally the scheduler step is one by epoch, but for Onecycle is for each step
        _metrics["train"], train_loss = training_loop(
            train_dataloader, _metrics["train"], optimizer, device, epoch, scheduler
        )
        _metrics["train"], _ = compute_and_log(
            _metrics["train"], step_end, train_loss, epoch, dt_epoch_start, "train"
        )

        dt_validation_start = datetime.now()
        _metrics["valid"], valid_loss = validation_loop(
            valid_dataloader, _metrics["valid"], device
        )
        _metrics["valid"], results = compute_and_log(
            _metrics["valid"], step_end, valid_loss, epoch, dt_validation_start, "valid"
        )

        # Save checkpoint
        print(f"\t{epoch} | Saving checkpoint...")
        model.save_pretrained(path_checkpoints)

        metric_bm = save_best_model(results, metric_bm, monitor, epoch, path_best_model)

    return model

Train

Step1

Define parameters and load model

step_name = "step_1"

epochs = 150
batch_size = 8
lr = 1e-4
lr_min = 1e-6
max_lr = 1e-3
weight_decay = 1e-3
num_workers = multiprocessing.cpu_count()

path_checkpoints = os.path.join(drive_output_base_path, step_name)
path_best_model = os.path.join(path_checkpoints, "best_model")

tfs = A.Compose(albumentations_transforms)

tfs

# @title Freeze encoder {form-width: "15%", display-mode: "form" }
for param in model.base_model.encoder.patch_embeddings.parameters():
    param.requires_grad = False

# Set the transforms pipeline
dataset_train.transform = tfs

# Define data loaders
train_dataloader = DataLoader(
    dataset_train, batch_size=batch_size, shuffle=True, num_workers=num_workers
)
valid_dataloader = DataLoader(
    dataset_valid, batch_size=batch_size, num_workers=num_workers
)

# Define optimizer
optimizer = AdamW(model.parameters(), lr=lr, weight_decay=weight_decay)

# Define scheduler
scheduler = OneCycleLR(
    optimizer,
    max_lr=max_lr,
    steps_per_epoch=len(train_dataloader),
    epochs=epochs,
    div_factor=max_lr / lr,
    final_div_factor=lr / lr_min,
    verbose=False,
)

fit model

!/opt/bin/nvidia-smi
!nvcc --version

model = fit(
    model=model,
    train_dataloader=train_dataloader,
    valid_dataloader=valid_dataloader,
    epochs=epochs,
    optimizer=optimizer,
    scheduler=scheduler,
    device=device,
    metrics=metrics,
    monitor=monitor,
    path_checkpoints=path_checkpoints,
    path_best_model=path_best_model,
    epoch_start=0,
)

Step2

Define parameters and load model

step_name = "step_2"
last_step_name = "step_1"
subdir = "best_model"

epochs = 150
last_epoch_step1 = 150
batch_size = 8
lr = 1e-4
lr_min = 1e-6
max_lr = 1e-3
weight_decay = 1e-3
num_workers = multiprocessing.cpu_count()

path_checkpoints = os.path.join(drive_output_base_path, step_name)
path_best_model = os.path.join(path_checkpoints, "best_model")

tfs = A.Compose(albumentations_transforms)

tfs

# @title load best model from last step {form-width: "15%", display-mode: "form" }
model = model.from_pretrained(
    os.path.join(drive_output_base_path, last_step_name, subdir)
).to(device)

# @title Unfreeze encoder {form-width: "15%", display-mode: "form" }
for param in model.base_model.encoder.patch_embeddings.parameters():
    param.requires_grad = True

# Set the transforms pipeline
dataset_train.transform = tfs

# Define data loaders
train_dataloader = DataLoader(
    dataset_train, batch_size=batch_size, shuffle=True, num_workers=num_workers
)
valid_dataloader = DataLoader(
    dataset_valid, batch_size=batch_size, num_workers=num_workers
)

# Define optimizer
optimizer = AdamW(model.parameters(), lr=lr, weight_decay=weight_decay)

# Define scheduler
scheduler = OneCycleLR(
    optimizer,
    max_lr=max_lr,
    steps_per_epoch=len(train_dataloader),
    epochs=epochs,
    div_factor=max_lr / lr,
    final_div_factor=lr / lr_min,
    verbose=False,
)

fit model

!/opt/bin/nvidia-smi
!nvcc --version

model = fit(
    model=model,
    train_dataloader=train_dataloader,
    valid_dataloader=valid_dataloader,
    epochs=epochs,
    optimizer=optimizer,
    scheduler=scheduler,
    device=device,
    metrics=metrics,
    monitor=monitor,
    path_checkpoints=path_checkpoints,
    path_best_model=path_best_model,
    epoch_start=last_epoch_step1 + 1,
)

Lapixdl evaluation

cats_names = [n for n, v in sorted(label2id.items(), key=lambda x: x[1])]
cats_names

['Background',
 'Nucleus',
 'Cluster',
 'Satellite',
 'Nucleus_out-of-focus',
 'Overlapped_nuclei',
 'Non-viable_nucleus',
 'Leukocyte_nucleus']

load model

step_name = "step_2"

path_checkpoints = os.path.join(drive_output_base_path, step_name)
path_best_model = os.path.join(path_checkpoints, "best_model")

!ls $path_best_model

config.json  pytorch_model.bin

best_model = model.from_pretrained(path_best_model)
best_model.to(device)

best_model.device

device(type='cuda', index=0)

Function to evaluate

def pred_mask_iterator(dataset, model):
    for item in dataset:
        img = item["image"].convert("RGB")

        encoding = feature_extractor(img, return_tensors="pt")
        pixel_values = encoding.pixel_values.to(device)
        outputs = model(pixel_values=pixel_values)
        logits = outputs.logits.cpu()

        # First, rescale logits to original image size
        upsampled_logits = nn.functional.interpolate(
            logits,
            size=img.size[::-1],  # (height, width)
            mode="bilinear",
            align_corners=False,
        )

        # Second, apply argmax on the class dimension
        seg = upsampled_logits.argmax(dim=1)[0]

        yield np.array(item["annotation"].convert("L")), seg

def evaluate(
    dataset,
    fold_name,
    model=model,
    categories=cats_names,
    metrics_choice=["IoU", "F-Score"],
):
    choices_folds = {"valid", "test", "test_slide"}
    if fold_name not in choices_folds:
        raise KeyError("this fold name is not valid")

    print(f"Working into {fold_name} with a total of {dataset.num_rows} items!")

    print(">Get the iterators for GT masks and predicted masks...")
    gt_masks, pred_masks = pred_mask_iterator(dataset, model)

    print(">Evaluating...")
    eval_results = evaluate_segmentation(gt_masks, pred_masks, categories)

    print(">Confusion matrix...")
    fig, ax = eval_results.show_confusion_matrix()
    fig.set_size_inches(16, 9)
    plt.show()

    print(f">Computing metrics ({metrics_choice})...")
    selected_cats = {id2label[c] for c in categories_to_train}

    print(
        f"  >The categories that the model use to train is the same used -> {selected_cats}"
    )
    print("  >Getting the metrics for each category...")
    metrics_by_category = {
        k: v
        for k, v in eval_results.to_dict()["By Class"].items()
        if k in selected_cats
    }

    print("  >Computing the mean of each metric with, and without background...")
    metrics_average = {
        m: np.nanmean([v[m] for v in metrics_by_category.values()])
        for m in metrics_choice
    }
    metrics_average_without_bg = {
        m: np.nanmean(
            [v[m] for k, v in metrics_by_category.items() if k != "Background"]
        )
        for m in metrics_choice
    }

    print(f">Metrics average: {metrics_average_without_bg}")
    print(f">Metrics average with background: {metrics_average}")
    print(">Metrics by category: \n")

    def fmt_metric_value_msg(metrics):
        return "\n\t\t".join(
            [
                (
                    f"{metric_name: <15} = {float(metric_value):.4f}"
                    if str(metric_value).isdigit()
                    else f"{metric_name: <15} = {metric_value}"
                )
                for metric_name, metric_value in metrics.items()
            ]
        )

    msg = "\t" + "\n\t".join(
        [
            f"{cat_name}\n\t\t{fmt_metric_value_msg(v)}"
            for cat_name, v in metrics_by_category.items()
        ]
    )
    print(msg)

    print(">Returning metrics from lapixdl...")
    return eval_results

Run evaluate

evaluate(
    dataset["validation"], "valid", best_model, cats_names, ["IoU", "F-Score"]
).to_dataframe()

evaluate(
    dataset["test"], "test", best_model, cats_names, ["IoU", "F-Score"]
).to_dataframe()
